Our Capabilities

Using the most current technology and years of experience we are able to accommodate all of your pattern, mold, and design needs. We develop products, not only for plastics, but for any application that requires scanning or CAD design. Let us help you go from print, to pattern, to production, in the most cost effective way possible.

List of Services:

In-house mold, pattern, design & construction

Digital Scanning

Solid Modeling

CNC Pattern Processing

Ceramic Mold Production

3D Design

Our Equipment

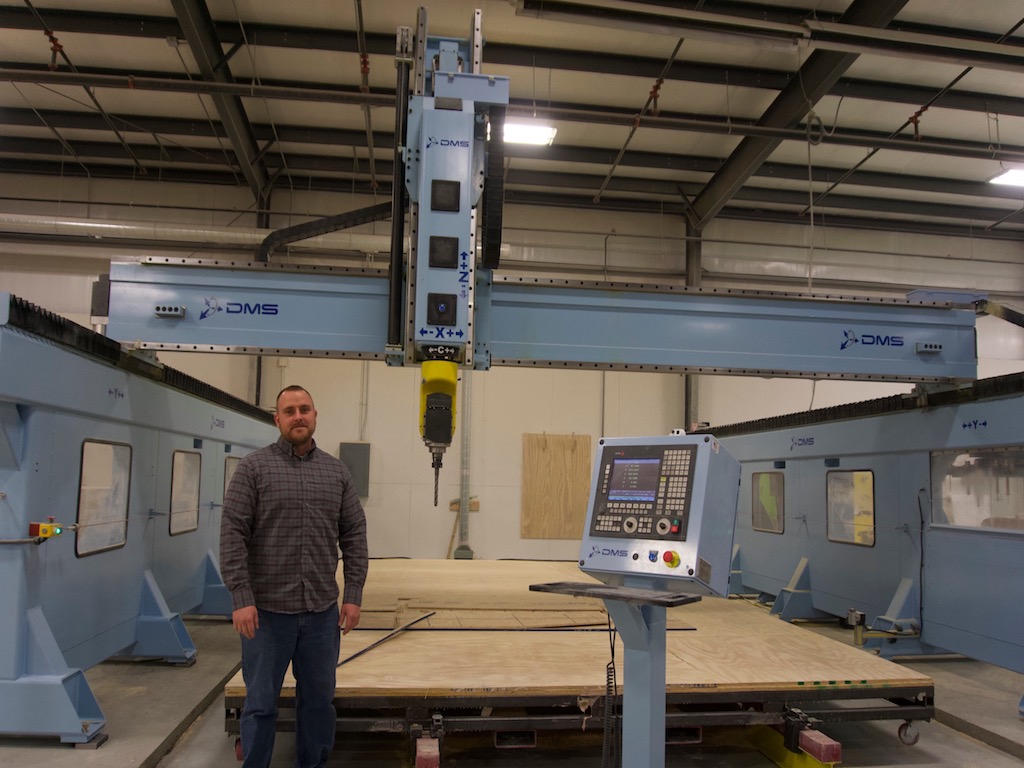

5 Axis DMS 15’x20’x75”

5 Axis DMS 5’x10’

5 Axis DMS 15’x15’

Paint Booth

20' W x 10'-4"H x 35'-9" L

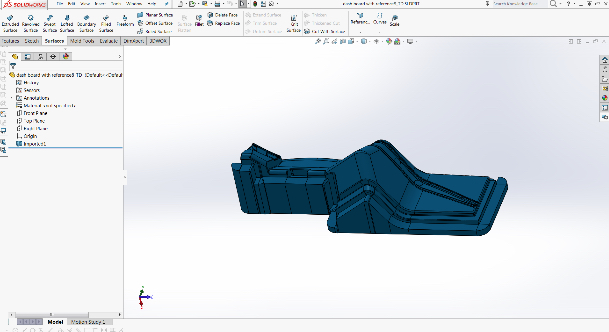

3D Design

Using SolidWorks, Hart Engineering Group can:
Construct a 3D model of a part or assembly

Alter existing models or scanned surface data

Reverse engineer a part to the specific pattern type

3D Handheld Scanning

With our 3D scanner and Geomagic software we can:
Scan existing parts, molds, or patterns

Produce a CAD model

Reverse engineer the part

Compare new and old parts for quality purposes

CNC Pattern Processing

Once we have a CAD model of the pattern we:

Construct stock material for the pattern

Set up the stock material on the CNC

Import the CAD file into Mastercam to make tool paths for the CNC to follow and cut the pattern

After the pattern is cut, it is then prepped for the mold process

Ceramic Thermoform Tooling

Our ceramic molds are made with premium quality resin. Each layer is hand laid for uniform thickness throughout the tool for maximum durability and premium quality

The surface is prepped, hand finished, and waxed

Layers of resin and ceramic are then sprayed on and multiple layers of fiberglass are rolled in

The part is left to sit overnight, trimmed, and pulled

The mold surface is sanded or bead blasted, drilled, then hand finished

Finally the tool is inspected and tested for vacuum
